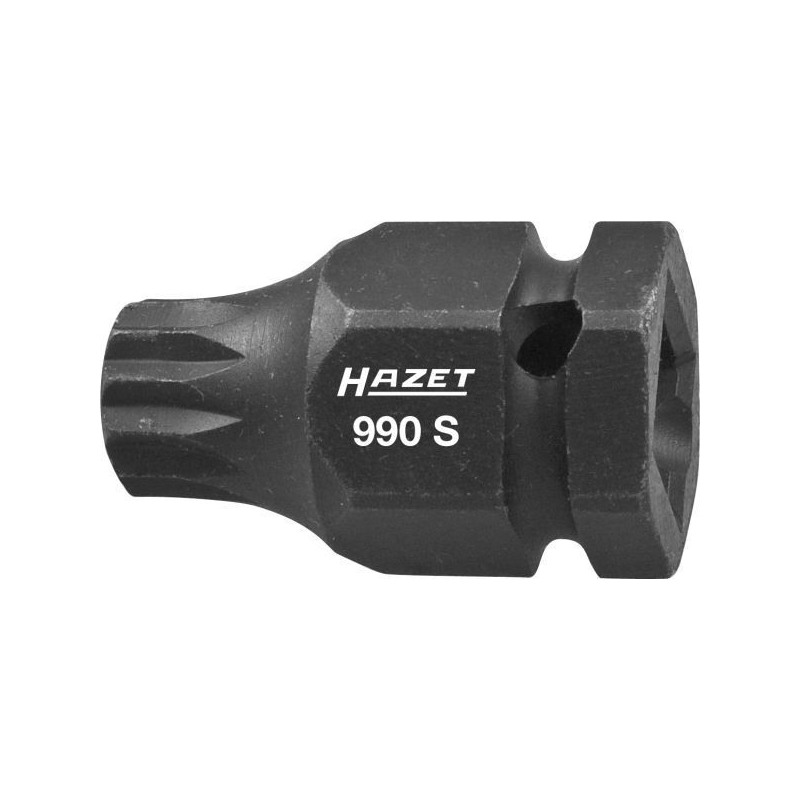

Technical Information: Application:
Screw connections on commercial vehicles and passenger cars
with XZN profile
e.g. on chassis, brake system (brake carriers), engines,
shock absorbers and camshaft sprocket
VW Passat 3C rear brake carrier screw connection and front
shock absorber screw connection,
VW T4 lower supporting joint.
Holding up the shock absorber in VW Golf 5, 6, Polo 9N,
9N2, AUDI A3 type 8P, TT and SEAT León
Choice of Inside square (Robertson) drive 12.5 = 1/2″ or
Outside hexagon 24 mm
Short design
With borehole for locking pin or safety spring and grove
for O-ring
Surface: phosphatized, oiled
DIN 3124, ISO 2725-2
Made in Germany
Drive: Square, hollow 12.5 mm (1/2 inch), Outside hexagon
24 mm
Output: Internal serration profile XZN
Wrench size: M14
Dimensions / length: 43 mm
Length l1: 4 mm
Net weight: 0.09 kg
