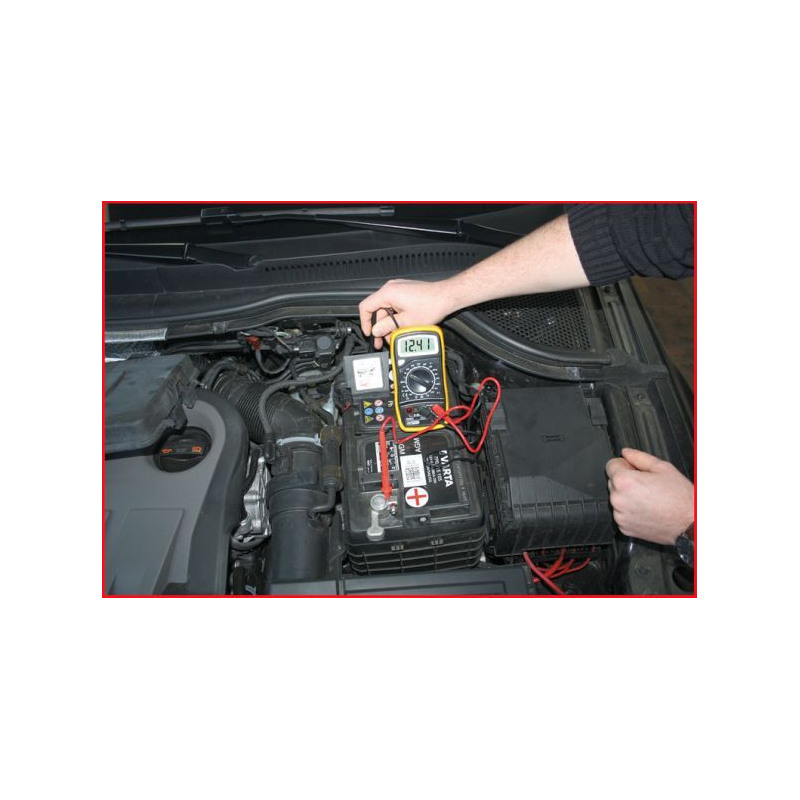

Brief Information: Digital Multimeter incl. test probesGeneral Information: •Specially developed professional multimeter for automotive
and commercial electrics and electronics

•Dual LCD display with digital display and bar diagram
display (32 segment bar graph)

•With automatic overflow and polarity indication

•With safety mechanism for V, µA/mA/A, therefore incorrect
connection is impossible

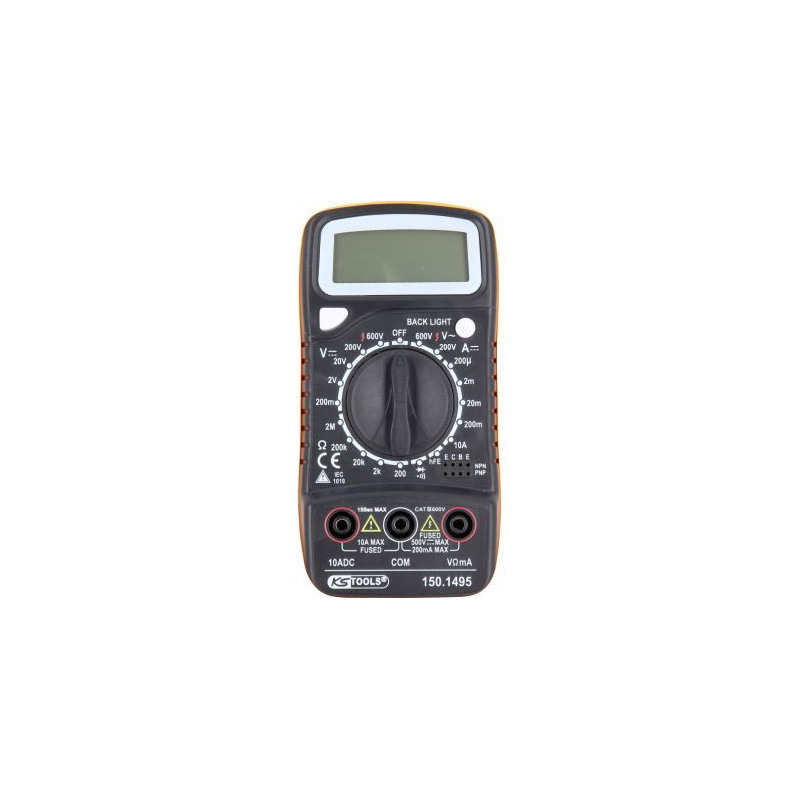

•Central 19-digit rotary switch

•Large LCD display with 3.1/2-digit, high-contrast display
with background lighting

•Charge state shown in display

•With integrated glass fuse 250mA / 600V, 10A / 600V – 32 x
6 mm to protect the circuits

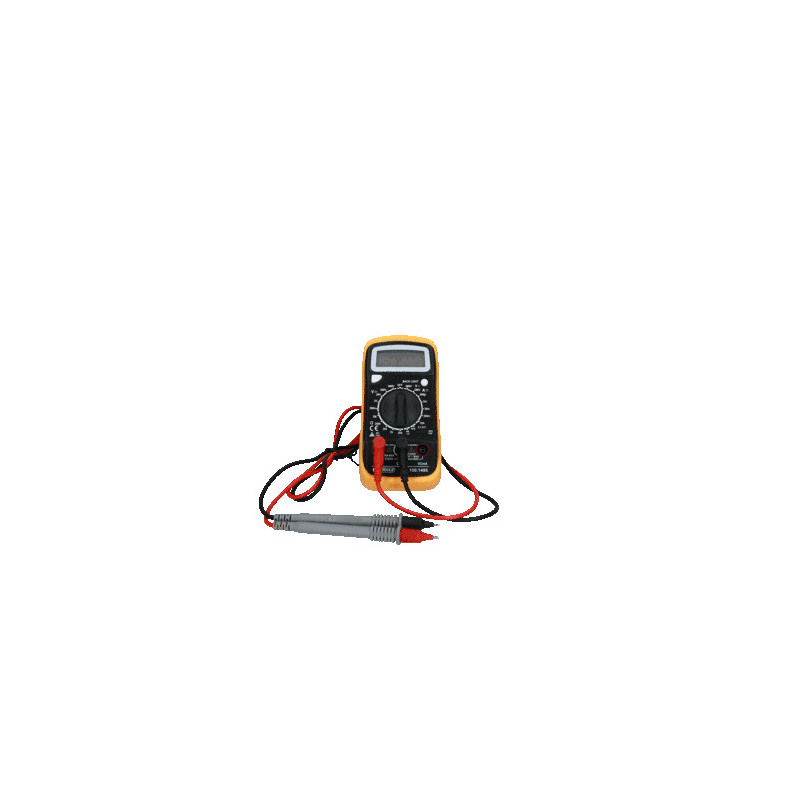

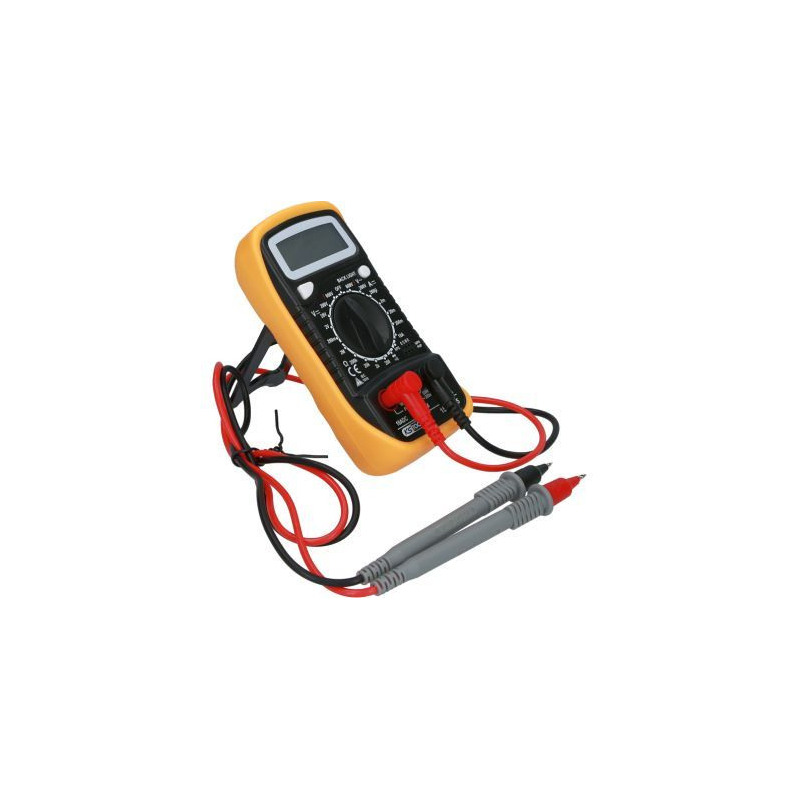

•Includes measuring line set with probes

•With on/off switch and automatic temperature shutdown

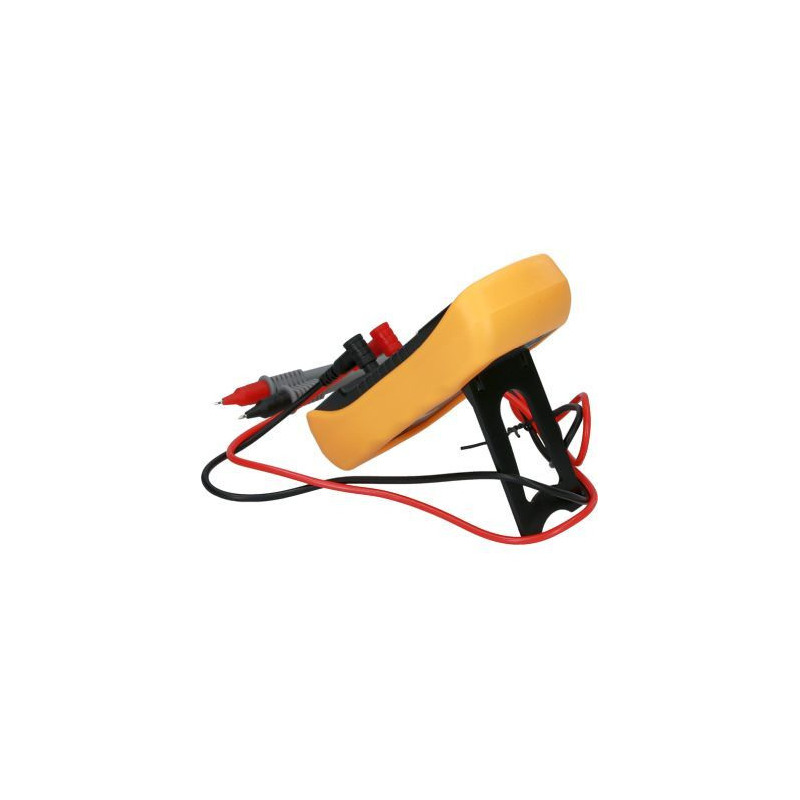

•With fold out adjustable foot in protective rubber holster

•Sturdy plastic housing


Functions:

•DC and AC voltage measurement

•DC and AC current measurement

•Resistance measurement

•Diode test (with acoustic signal)

•Continuity test (with acoustic signal)

•Data hold function

•Battery check indicator
