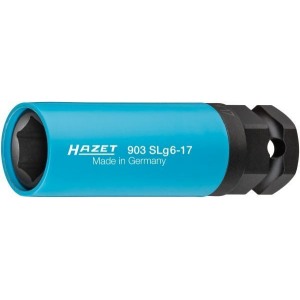

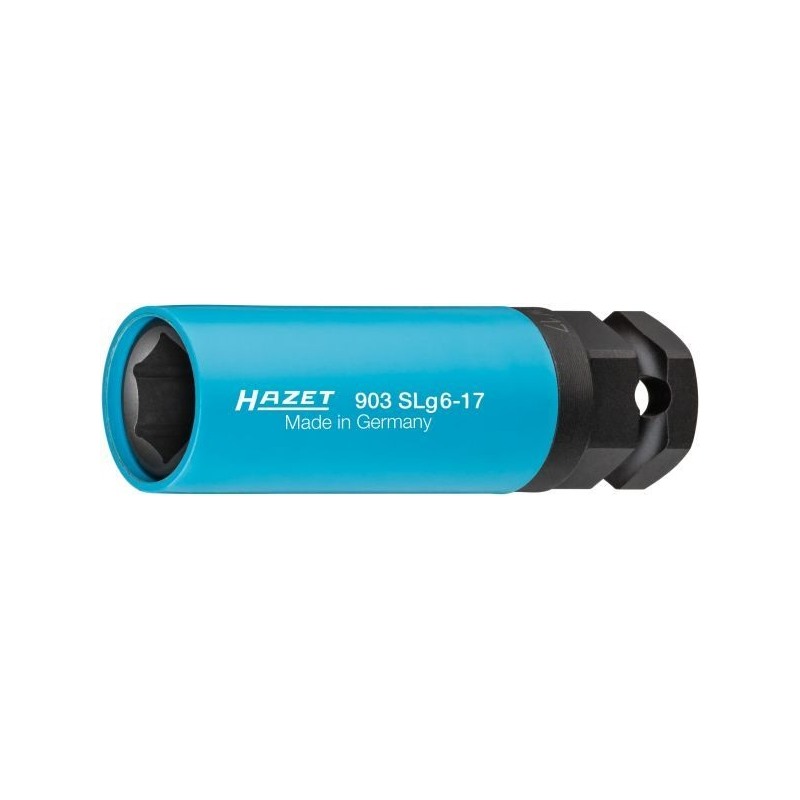

Tehniline informatsioon: Application:
Better actuation of stiff wheel bolts with optional use of
a 20 mm = 3/4″ impact wrench
Specially for vans and light trucks, such as e.g. FIAT
Ducato, MERCEDES-BENZ Sprinter
Operation via impact adapter e.g. HAZET 1003S-1 or
nut-driver Wrench size 24 mm enables high force
transmission thanks to optimal 20 mm = 3/4″ drive
6-point mounted on the socket enables adaptation to 20 mm =
3/4″ drive
Plastic casing protects rims against scratches
Long design
With borehole for locking pin or safety spring and grove
for O-ring
DIN 3124, ISO 2725-2
Made in Germany
Drive: Square, hollow 12.5 mm (1/2 inch), Outside hexagon
24 mm
Output: Outside hexagon Traction profile
Wrench size: 17
Dimensions / length: 85 mm
Diameter d1 (output side): 30 mm
Diameter d2 (drive side): 27 mm
